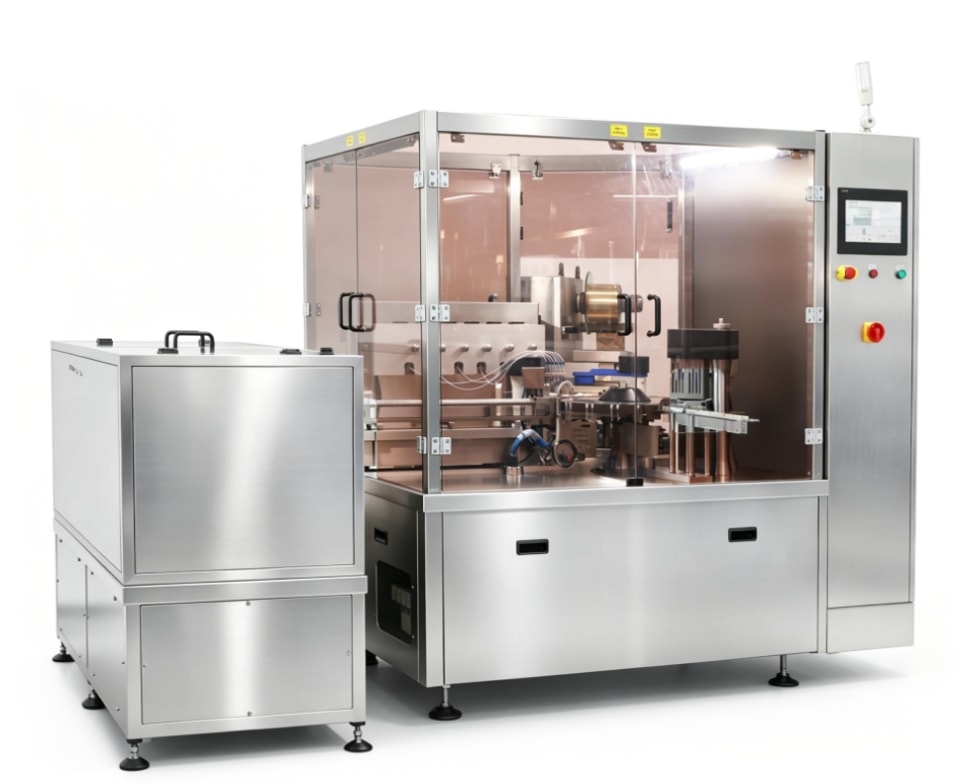

Fits 1–12 channel blood typing cards filling & sealing, separate multi-channel cross-contamination free, one-click recipe switch with custom machine supportDual auto/semi-auto capacity, servo micro filling ±1μL accuracy for precise blood typingGentle submerged anti-foam aseptic filling, lower volatilization & retain reagent activityPID adjustable temp & pressure heat sealing, fits aluminum & plastic composite film, leak-proof & anti-volatilization sealing edgeDetachable 316L sanitary parts, auto fault alarm, GMP & CE certified

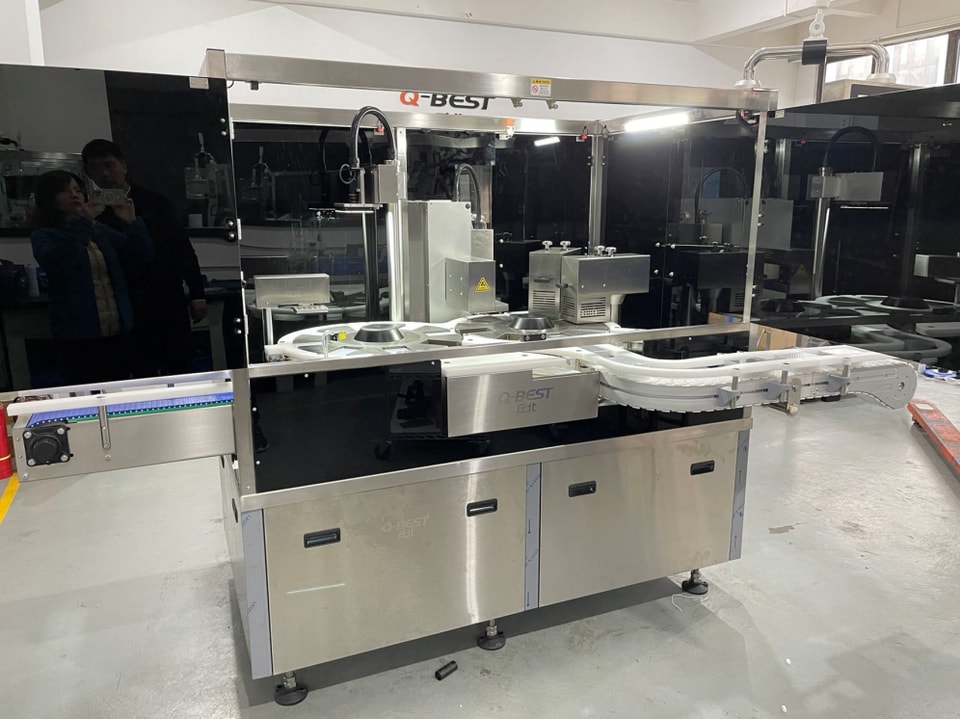

Multi-channel synchronous filling for 96-well plates, 400–1200 pcs/h, custom non-standard machine supportedPeristaltic /high-precision plunger pump filling, separate isolated piping, cross-contamination freePID adjustable temp-pressure heat sealing for aluminum foil film, leak & volatilization preventionDetachable 316L SS wetted parts, easy to clean & GMP compliantOne-click recipe switch, auto fault alarm, GMP & CE certified

Automatic filling and capping line for small-volume cryovials, sample tubes and calibrator products, available in multiple output configurations. Key Features Filling range of 10 μL–5,000 μL with ±0.5%–±1% accuracy Machine configurations covering 40–130 bottles/min Lift-type filling minimizes foaming and splashing Servo-controlled capping torque is stable and adjustable Optional Class 100 laminar flow, RABS, isolator and in-line labeling modules Compact GMP-compliant clean design with enclosed bottom drive mechanism CE certified

Automatic line for filling, weighing, inner-tube insertion and capping of Hitachi 008 and dual-chamber vial products. Key Features Independent R1/R2 single-chamber processing in separated filling, weighing, tube-insertion and capping zones Separated processing isolates splashing and prevents reagent cross-contamination 100% filling-volume inspection and in-line net-weight weighing for each chamber Sleeve-type capping head with stable, controllable servo torque for narrow cap spacing Optional Class 100 laminar flow, RABS, isolator and in-line labeling modules GMP-compliant clean design with enclosed bottom drive mechanism CE certified

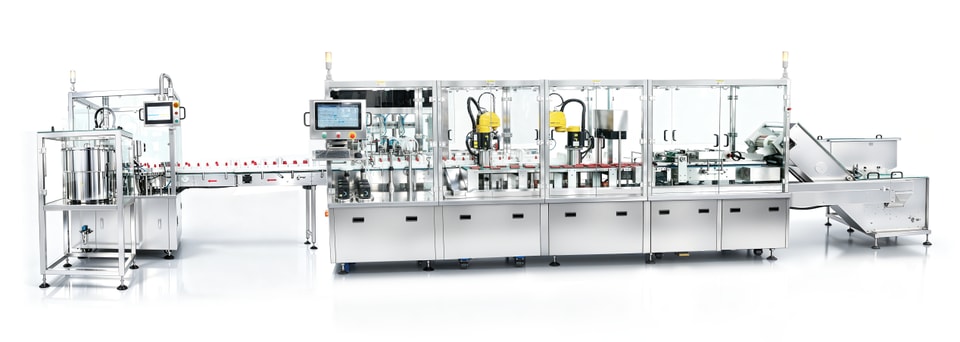

Automatic filling and capping line for irregular biochemical reagent bottles and slender tall bottles, including 7170 and 7150 formats. Key Features Format changeover by replacing bottle holders for multiple irregular bottle types Optional robotic bottle loading supports output up to 100 bottles/min 100% in-line net-weight inspection for every bottle Lift-type filling minimizes foaming and splashing Servo-controlled capping torque is stable and adjustable Optional Class 100 laminar flow, RABS, isolator and in-line labeling modules GMP-compliant clean design and CE certification

Automatic filling and capping line for large-volume products such as hematology reagents, washing solutions and substrate solutions. Key Features Flowmeter-based filling for precise dosing monitoring Compatible with CIP/SIP in-place cleaning and sterilization without disassembly Servo-driven lift filling reduces foaming Servo-controlled capping torque is stable and adjustable Optional laminar flow hood, RABS, isolator and in-line labeling modules GMP-compliant clean design with enclosed bottom drive mechanism CE certified

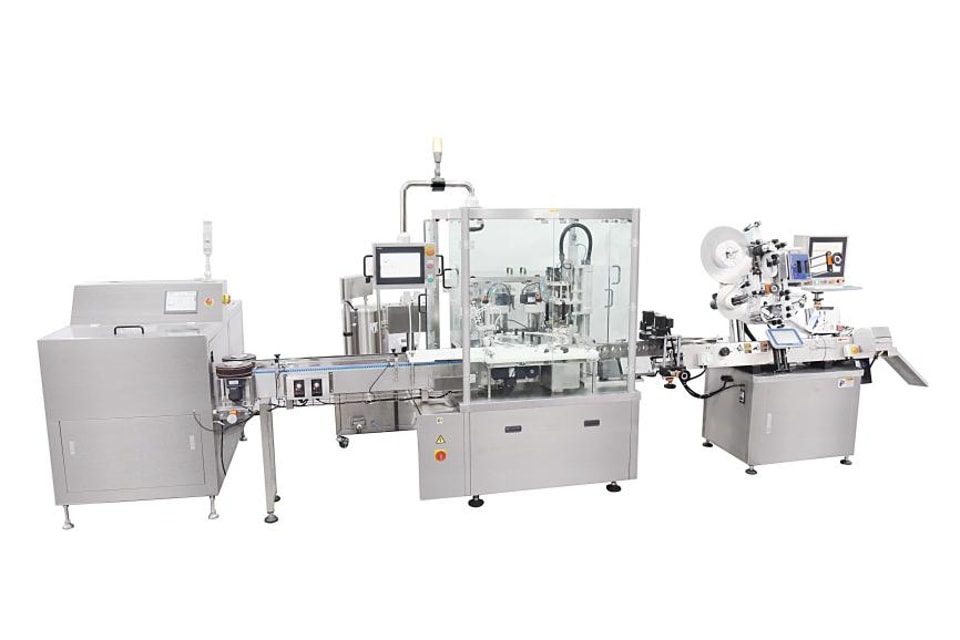

Automatic filling and capping line for round bottles containing IVD reagents, diluents and chemiluminescent solutions. Key Features Fully automatic bottle sorting and feeding for stable bottle supply Vacuum bottle-cleaning station removes internal dust and impurities by negative pressure Cam and servo-driven core movements provide stable, durable operation Lift-type filling minimizes foaming and splashing Servo-controlled capping torque is stable and adjustable Optional Class 100 laminar flow, RABS, isolator and in-line labeling modules GMP-compliant clean design and CE certification

One-stop filling & cap assembly for IVD dropper bottles, customizable non-standard designOutput 1800–5000 pcs/h, dual pump optional, high-precision servo micro dosingSubmerged anti-volatilization filling, separate pipelines zero contamination, vacuum anti-residue nozzlePLC auto fault alarm, optional online weighing & laminar flow unitGMP clean standard & CE certified

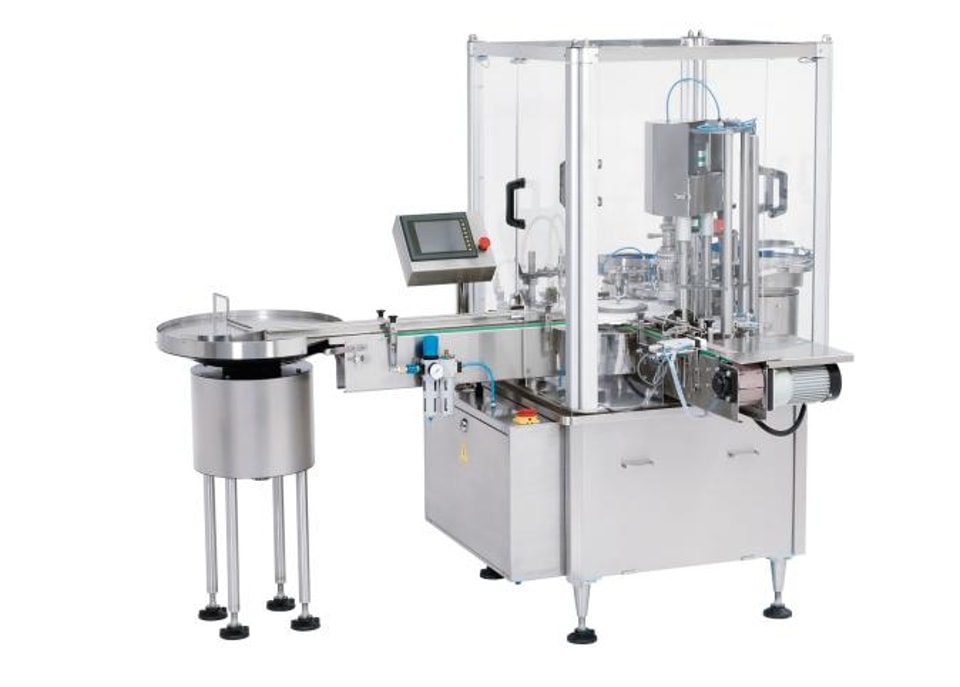

Core AdvantagesFilling & capping for round ampoules/dropper bottles, modular to connect full production lineCapacity 1500–5000 pcs/h, customizable 1–20ml, peristaltic/plunger pump optionalSeparate isolated piping cross-contamination freeLiquid contact parts: SUS316L & silicone, stable adjustable capping torqueRecipe memory quick spec switch, PLC interlock auto alarm, GMP & CE certified

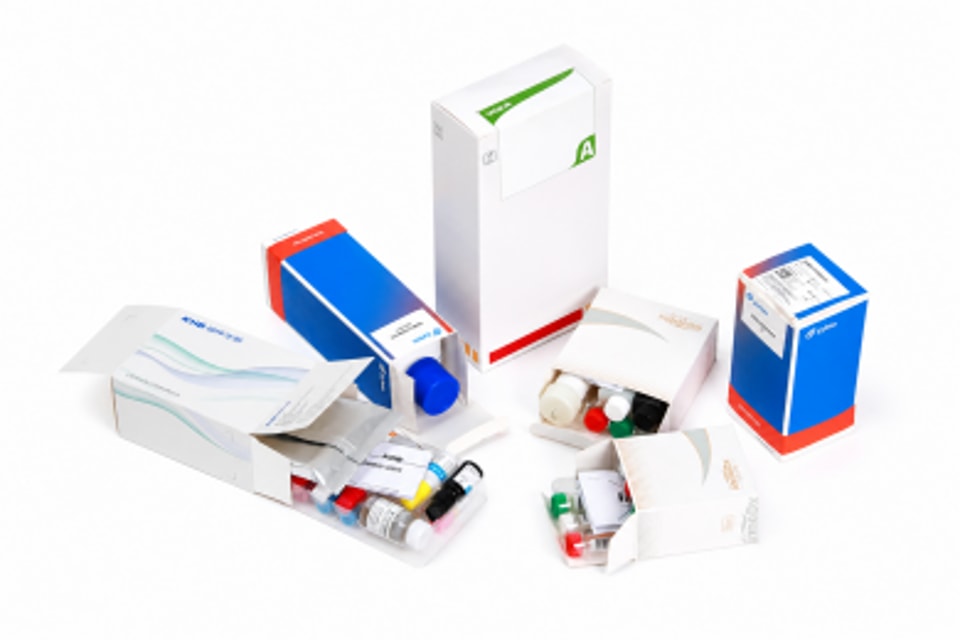

Exclusive packaging line for ELISA kits, fits trays & bottles, one-click recipe switch & custom designOutput 1200–4200 pcs/h, dual speed versions for trial & mass productionAll-in-one packaging process, optional feeding & dual carton sealing modes304 stainless low-noise clean frame, vision inspection auto stop for missing partsSuitable for cleanroom, certified GMP & CE

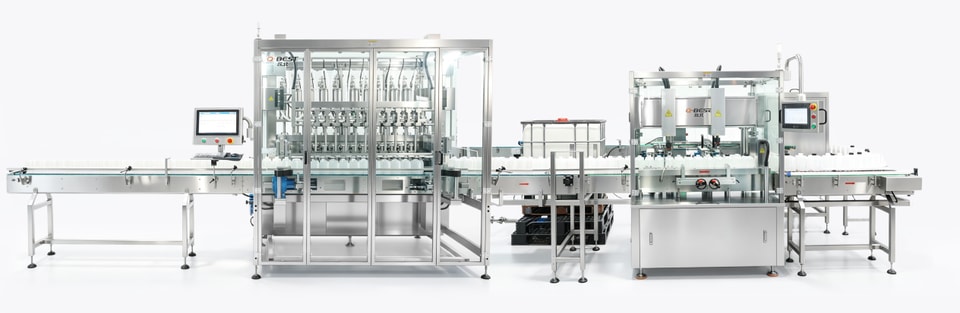

Core AdvantagesFor 50ml–10L non-PVC pouches, customizable range, quick jigs for fast switchOutput 1000–3000 pcs/h, integrated filling & capping, servo back-suction anti-residueClosed aseptic pipeline compatible with isolators, anti-corrosion for adjuvant & disinfectant＜85dB Auto alarm for all faults, low running noise below 85dBCustom non-standard equipment available, GMP & CE certified

Automatic filling and capping system for small-volume cryovials and calibrators, designed for installation under a biosafety cabinet to protect operators, reagents and the cleanroom environment. Key Features Integrated biosafety cabinet protection for biological laboratories and IVD cleanrooms Lift-type filling minimizes foaming and liquid splashing Servo-controlled capping torque is stable and adjustable Optional Class 100 laminar flow hood, RABS clean unit and in-line labeling module Compact footprint with GMP-compliant clean design and enclosed bottom drive mechanism CE certified
